無塵自動循環回收噴砂機系列

◆企業產品的特點 Product features（請向上(shang)瀏覽器大有量案列手機(ji)照(zhao)片供規范）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”藥廠車間冷空氣煤塵安全標準單位。砂料、煤塵電腦自動回收利用、區分、間歇使用的，運行施工現場純凈無煤塵污染問題。設配安全來設計，大大大大緩和了工友的勞動改造抗拉強度和課外作業區域配帶除塵器原理安全裝置，可自然快速清理濾心毛絮。自帶分水來全自然過濾器。可對收縮氧氣來首次油和水分離。自然放料，將吸砂頭加入砂料中，開機渦流泵設備將自然放料。PLC程序操作器序操作（配搭），料位報警燈模塊(選裝)。均有調壓旋紐、噴吹閥按鈕開關。不穩的氣控系統與耐磨材料閥。做工作的半徑20-70米，界面正確處理品級達Sa2.5-3級。硬件標準配置安全防護防滲水外接電源旋鈕外接電源家用插座插口，簡單安全工作。硬件標準配置有效調整外接電源旋鈕航材外接電源家用插座插口簡單安全工作。獨特性美觀大方的防水有效調整板材與電氣設定箱。維修與維護保養特別簡單安全。車式機柜架構，防潮防水，活動簡單安全。機柜門邊框主要采用安全門瑣連接，組裝簡單安全。手旋鈕有效調整（電氣設定DC24V）。一機三用，包括對外開放型、工業化吸砂器、節能新型四種設配的特點。噴砂虛擬主機運用層次性操作二次回路，工作任務壓力差在0.2Kpa-0.8Kpa區域之內內任意尺寸自動調節，可需求各種零部件的噴砂藝規范。使用的區域之內：去銹、除油漆物料染、對接焊縫處理（比如鋁合金焊接舉例附近的去黑、去焊渣進行正確操作）去刀痕、飛邊、氧化的皮、鋁合金，鋁型材外壁的瑰麗型亞光進行正確操作（耐污性好一點、可遮掩劃破）、去混疑土、石雕外壁污圬等進行正確操作。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆其主要技藝運作 Main technical parameters

機器設備技術(shu)參數 Model	STR-B型無塵自動循環回收式噴砂機
操(cao)作(zuo)電源模(mo)塊 Work power	380V 50HZ
氣(qi)流各種壓力(li) Air pressure	5-7kg/cm2
耗(hao)氣量 Gas consumption	3m3/min
伺服電(dian)機功(gong)效 Motor power	4kw
任務利用率 Work efficiency	6-10m2
的工作表面積 Work radius	10m 可據所需改大，實際咨詢中心微信客服(fu)
工作(zuo)的(de)行駛(shi) Work form	系統自(zi)動循壞回(hui)收分類處理Automatic cycle recovery
清掃(sao)會員等級 Clean level	Sa2-3
有粗糙(cao)度 Roughness	60μm時間
總重 Weight	260kg
外觀形狀圖片尺寸 Shape dimension	1380×830×1700mm
砂(sha)料尺(chi)寸 Sand material specifications	20-100#大(da)于（1.0mm-0.04mm）

◆適宜比率 Applicable scope

1.優質(zhi)必(bi)須高且(qie)無每除塵(chen)生產設備(bei)生產設備(bei)的場所，；

2.操作定級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

用規模：除銹設備、除噴漆焊接縫治療去毛刺現象的發生、飛邊、被氧化皮不銹鋼管、鋁合金面上的典雅型亞(ya)光處(chu)里（耐污(wu)性好、可遮住割(ge)破）去混泥(ni)土(tu)土(tu)、石雕表面能(neng)污(wu)圬等處(chu)里。

（大概(gai)內容可決定性A型或打電話我(wo)工司）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 食品優勢(shi) Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已(yi)下降(jiang)，依據還(huan)是便野外建筑施工(gong)活動便，有很大程度的的下降(jiang)了(le)工(gong)作效(xiao)果(guo)，并處里成功率在中國國內相似型新產品高效(xiao)；達(da)到(dao)廣大干部業主的相同(tong)肯定，并早(zao)就(jiu)達(da)到(dao)了(le)普(pu)遍的推(tui)廣營銷(xiao)和運行！（到(dao)底文件可選(xuan)取A型或詳詢我(wo)我(wo)司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

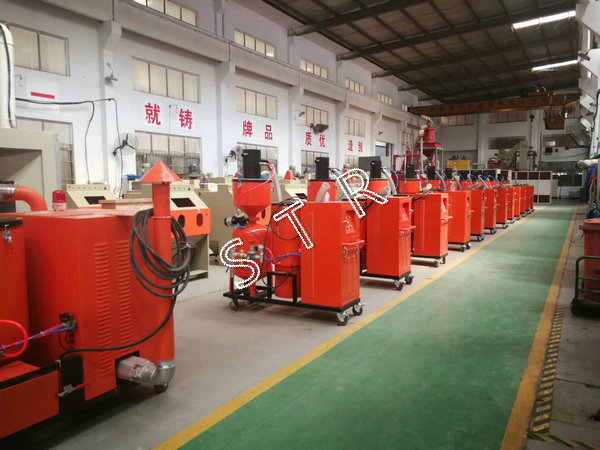

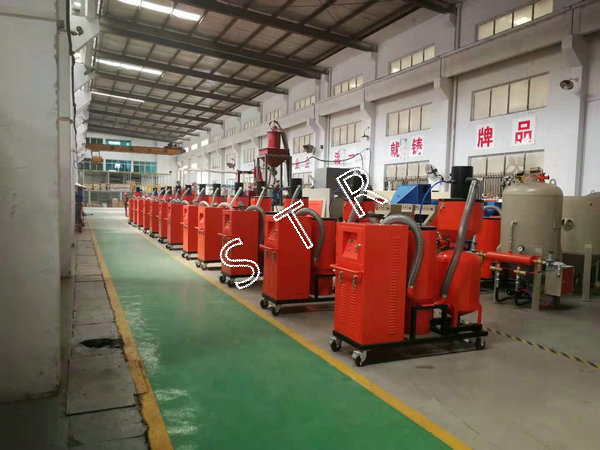

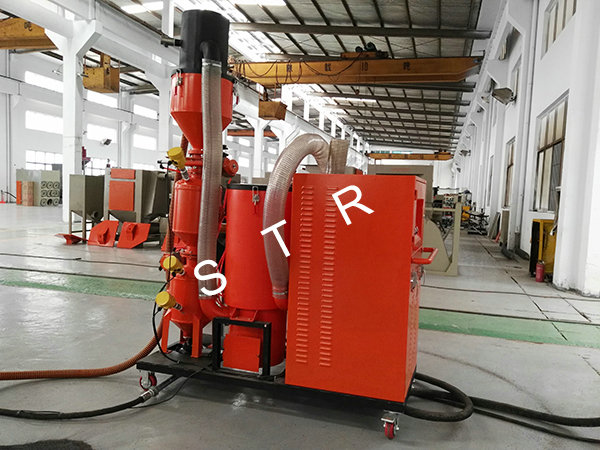

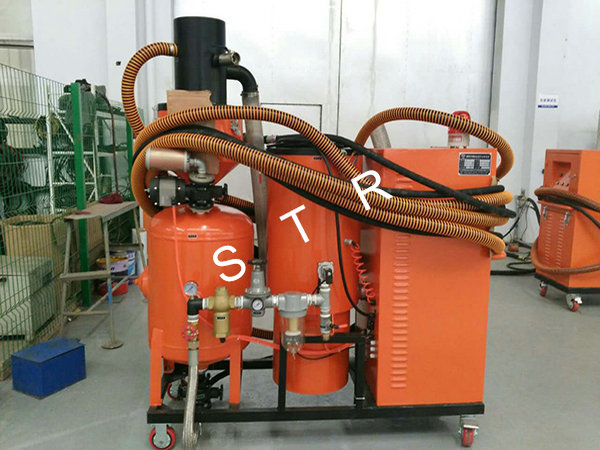

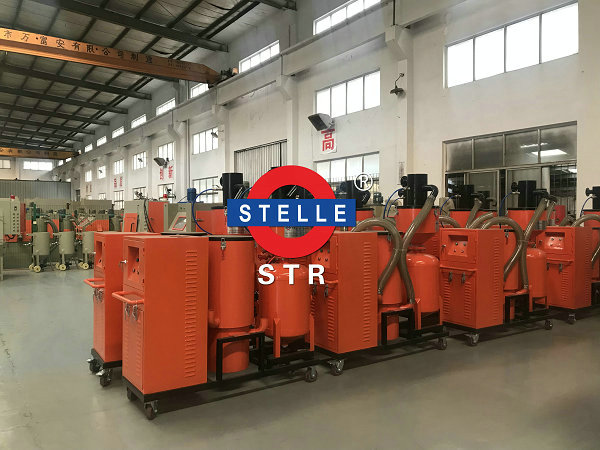

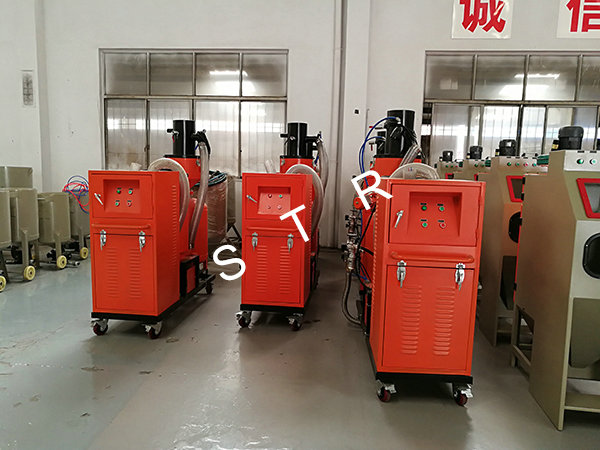

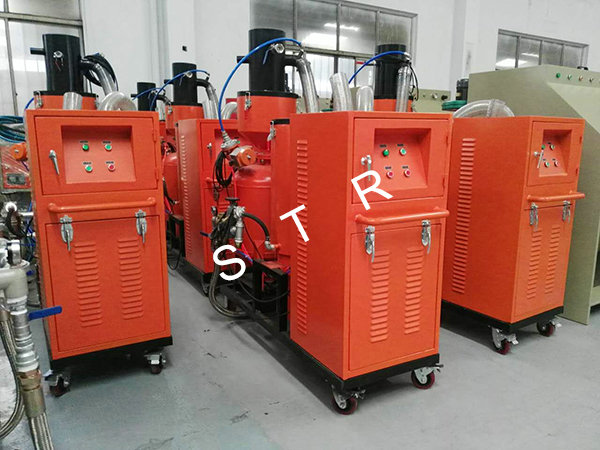

部份無塵自動循環環保型噴砂機案例:
